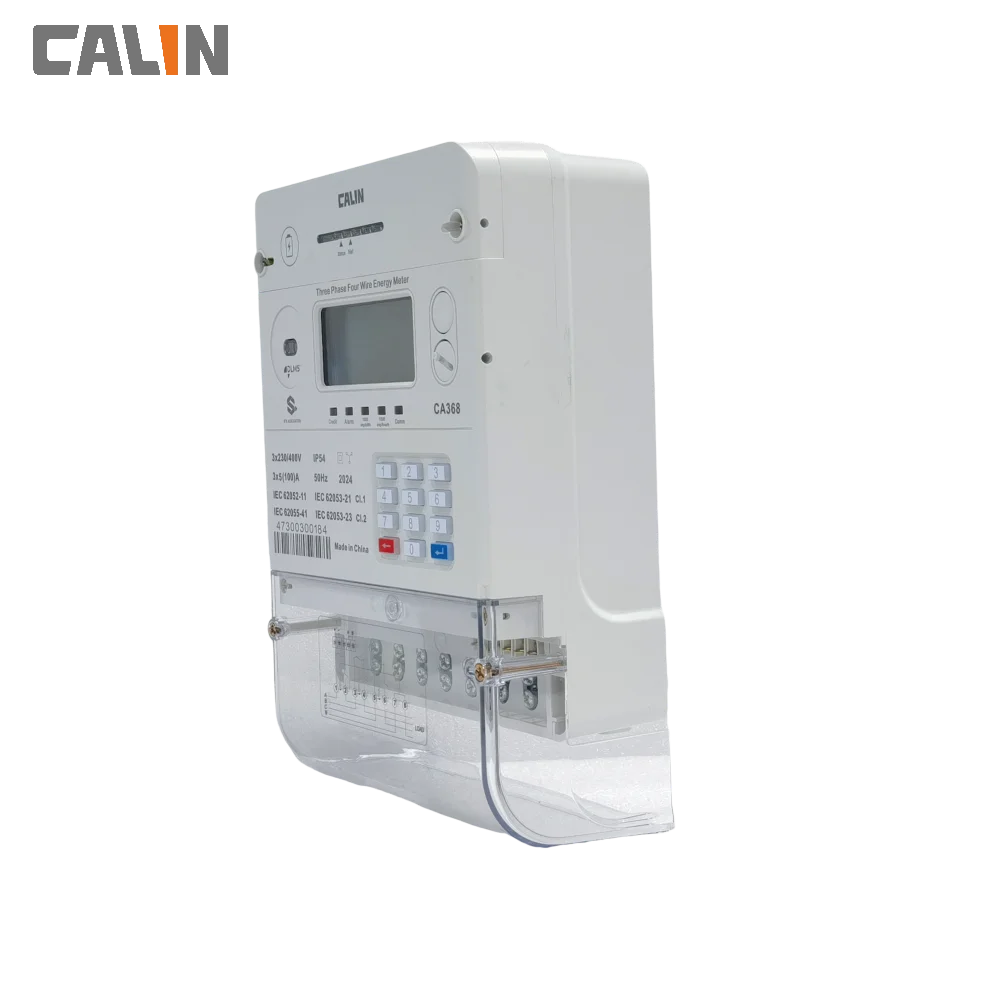

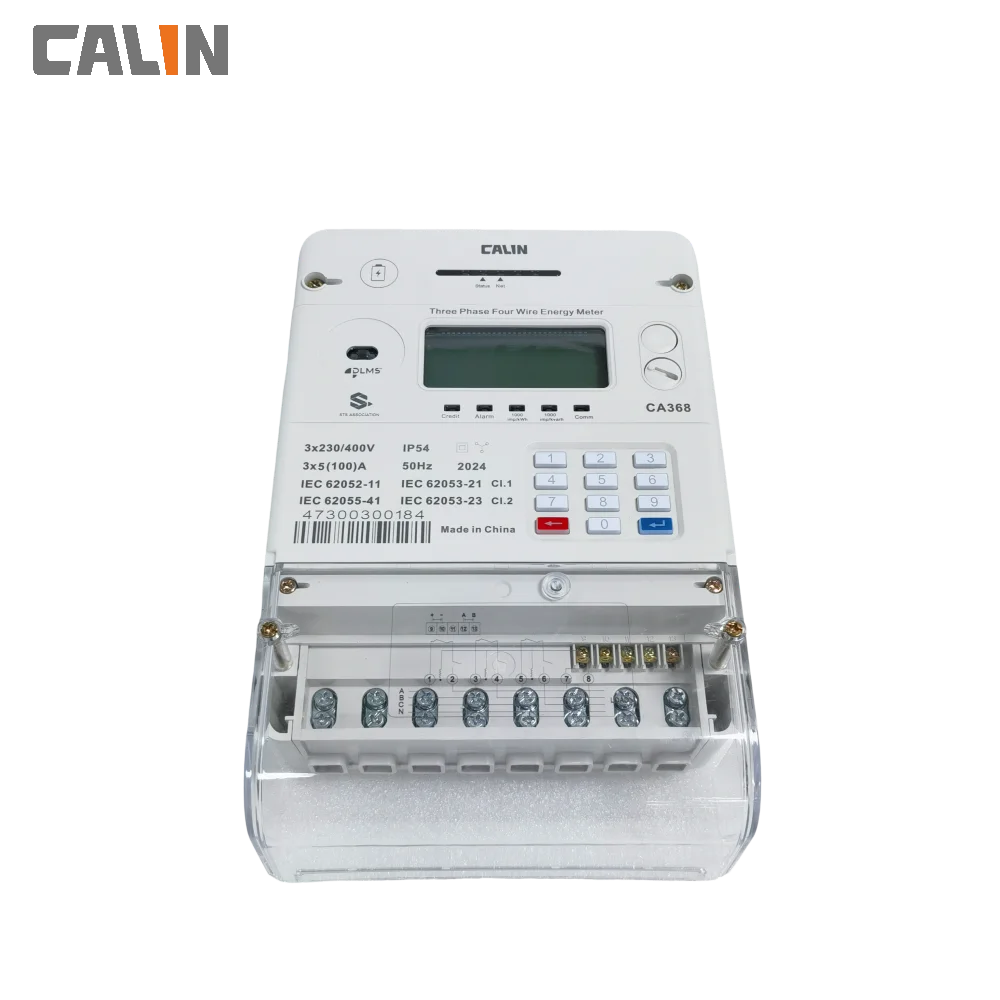

Dual-Source STS DLMS Standard Prepaid Electricity Meter with 100 A Max Current for Industrial Broad Range Applications

Name: DualSource STS DLMS Standard Prepaid Electricity Meter with 100 A Max Current for Industrial Broad Range Applications
Brand: CALIN
Price: 46 USD

Buy cheap Dual-Source STS DLMS Standard Prepaid Electricity Meter with 100 A Max Current for Industrial Broad Range Applications product

Model Number : CA368-F01

Brand Name : CALIN

Place of Origin : Guangdong, China

MOQ : 1

Price : $46-55

Accuracy Class : Class 1.0

Max Current : 100 A

Measuring Energy Range : 0-10000000 kWh, 0-999999.99 KWh

Phase : Three Phase

Rated Current : 10A

Basic Current : 10A

Dimensions : 244x168x79mm

Display Type : Digital Only

Operating Temperature : -25℃～70℃

Output Voltage : 220v/230v/240v

Nominal Voltage : 3x230/240V

Limited Voltage : 50%~130%Un

Nominal Frequency : 50-60Hz+5%

Starting Current : 0.4%IB

Active Energy Constant : 1000imp/kWh

Contact Now

Dual-Source STS DLMS Standard Prepaid Electricity Meter with 100 A Max Current for Industrial Broad Range Applications

The CA368 allows a utility and service provider to make flexible payment control settings such as free basic unit, emergency overdraft credit, low credit waring, repayment rules.

Key Benefits

1)Meters can be extended to Split type with UIU
2) Available with choices of PLC/ RF/ LoRa/ GSM wireless communication with AMR AMI server
3) Consumpton record on Time of Use (TOU) basis

Technical Parameters
Nominal voltage Un	3x230/240V
Limited voltage	50%~130%Un
Nominal frequency fn	50-60Hz+5%
Basic current(Ib)	10A
Maximum current(Imax)	100A
Starting current(Ist)	0.4%IB
Active energy constant	1000imp/kWh
Accuracy as Active energy to IEC62053‐21	Class1.0
Power consumption in Voltage circuit	<2W <8VA
Power consumption in current circuit	<1VA
Operating temperature	-25℃ to+70℃
Storage temperature	-40℃ to+85℃

Main Features

a) Critical metrological value measurement: V, A, PF, P, etc
b) Trip on no credit or preset balance level
c) Disconnect on tamper detected
d) Meter allows setting for power limit, emergency credit, debt collection, surchages, etc
e) Uni-directional measurement for reverse energy( SRE )
f) Anti-fraud features

Q: Are you a trade company or a manufacturer?

A: We are a original meter manufacturer and solution provide, we can provide more support for you.

Q: Do you provide samples for testing, free or extra?

A: We can provide samples, but we will charge reasonable cost.

Q: What's paypment terms you accept?

A: Paypal/West Union/ T/T / L/C is available. payment ≤USD2000, 100% In advance. payment>USD2000, 30% in advance by T/T, balance payment before shippment.

Q; How long is your delivery time?

A: Generaly it is 5-10 days if the goods is stock, or it is 15-30 days based on your order quantity.
